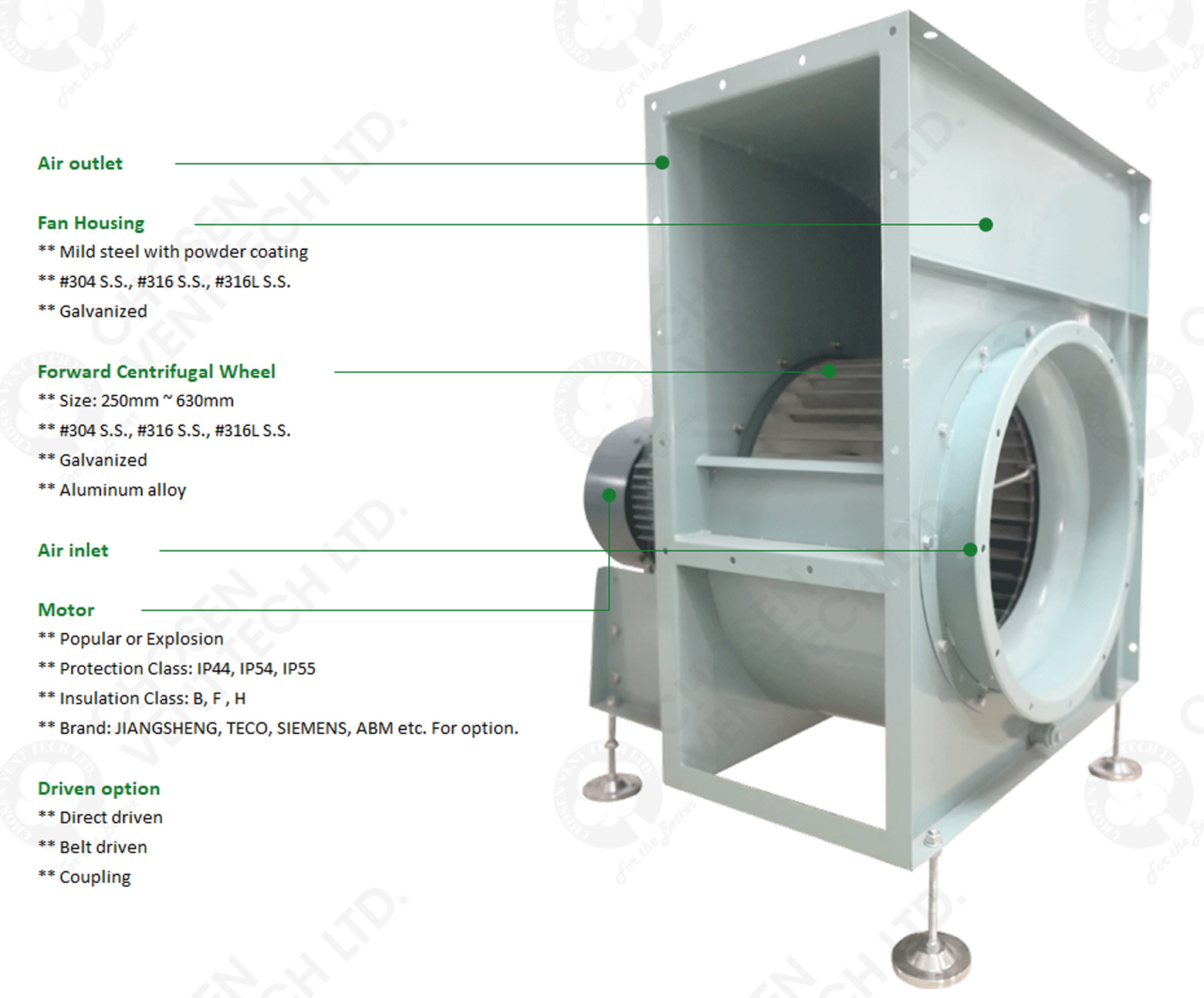

SWSI Forward Centrifugal Fan (FSW-48 Series)

As experienced manufacturer and supplier, CHOSEN provides Forward centrifugal fan (SWSI) with high performance and competitive price. Customization Available! Contact us right now!

Application

· For ventilation (General air or Explosion-proof air supply or exhaust) system and industrial(HVAC) applications where moderate capacities at low pressures are required such as building, air-conditioning, firfighting, air circulation or cooling and so on.
· For equipments or system of filtration & drying, fume hood & spray booth, painting room, food processing , kitchen room and so on.

Advantages

· The Fan with Compact structure.
· The impeller passes dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.
· The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
· Transportation gas temperature at -20℃ ~ 200℃.
· The fan performance be test by airway or AMCA both available, the fan performance data is truth and reliable.
· Fan Material is optional according to your need.
· Customzation is acceptable.

Parameters

Item	Impeller Dia	Power	Speed	Air Flow	Total Pressure	Static Pressure	Noise
Item	mm	Kw	rpm	CMH	Pa	Pa	dB(A)
FSW-48-250	250	0.75	1450	1785	468	398	69
				1890	477	396
				1995	454	395
				2100	435	337
				2625	289	237
FSW-48-280	280	1.5	1450	2310	701	631	72
				2520	691	605
				2940	695	582
				3255	658	517
				3675	590	413
FSW-48-315	315	0.75	960	1581	355	333	67
				1977	339	305
				2372	329	279
				2768	297	230
				2965	267	190
		2.2	1450	2520	901	845	75
				3150	861	774
				3780	834	709
				4410	755	585
				4725	676	481
FSW-48-355	355	1.1	960	2224	517	489	69
				3892	519	439
				4171	492	392
				4866	447	321
				5422	410	255
		4	1450	3360	1179	1117	79
				5880	1182	1001
				6300	1124	895
				7350	1021	733
				8490	935	583
		5.5	1450	8715	881	520	81
				9030	845	485
				9450	798	446
FSW-48-400	400	3	960	3150	639	606	71
				4662	692	620
				5508	697	595
				5775	704	587
				6090	697	574
		5.5	1450	6300	1491	1358	82
				7350	1496	1313
				8400	1463	1216
				8820	1418	1154
				9240	1372	1086
		7.5	1450	9975	1344	1029	84
				10500	1281	924
				11550	1155	725
FSW-48-450	450	4	960	4433	795	753	77
				5644	855	786
				7491	919	798
				9416	878	687
				11010	802	541
		5.5	960	11550	774	490	78
				12075	741	4430
				12600	707	397
FSW-48-500	500	5.5	960	6300	931	876	79
				8400	980	880
				10500	946	791
				11550	901	713
				13650	783	520
		7.5	960	14175	730	431	80
				14700	693	373
				15225	667	318
FSW-48-560	560	4	720	6235	647	612	77
				8573	716	651
				10133	735	644
				11691	722	602
				13250	683	527
		5.5	720	14028	578	404	78
				15582	525	315
				16464	494	257
		7.5	960	8400	1174	1112	81
				11550	1300	1182
				13650	1334	1169
				15750	1311	1092
				17850	1238	957
		11	960	18900	1050	735	82
				21000	945	525
				22050	893	473
FSW-48-630	630	7.5	720	6300	799	777	79
				11550	922	849
				14700	947	828
				16800	924	770
				19950	854	636
				22050	819	553
		11	960	7693	1445	1412	83
				10899	1486	1421
				12680	1593	1505
				13704	1642	1540
		15	960	15560	1673	1541	85
				19804	1719	1504
				22633	1677	1397
				26775	1549	1154
