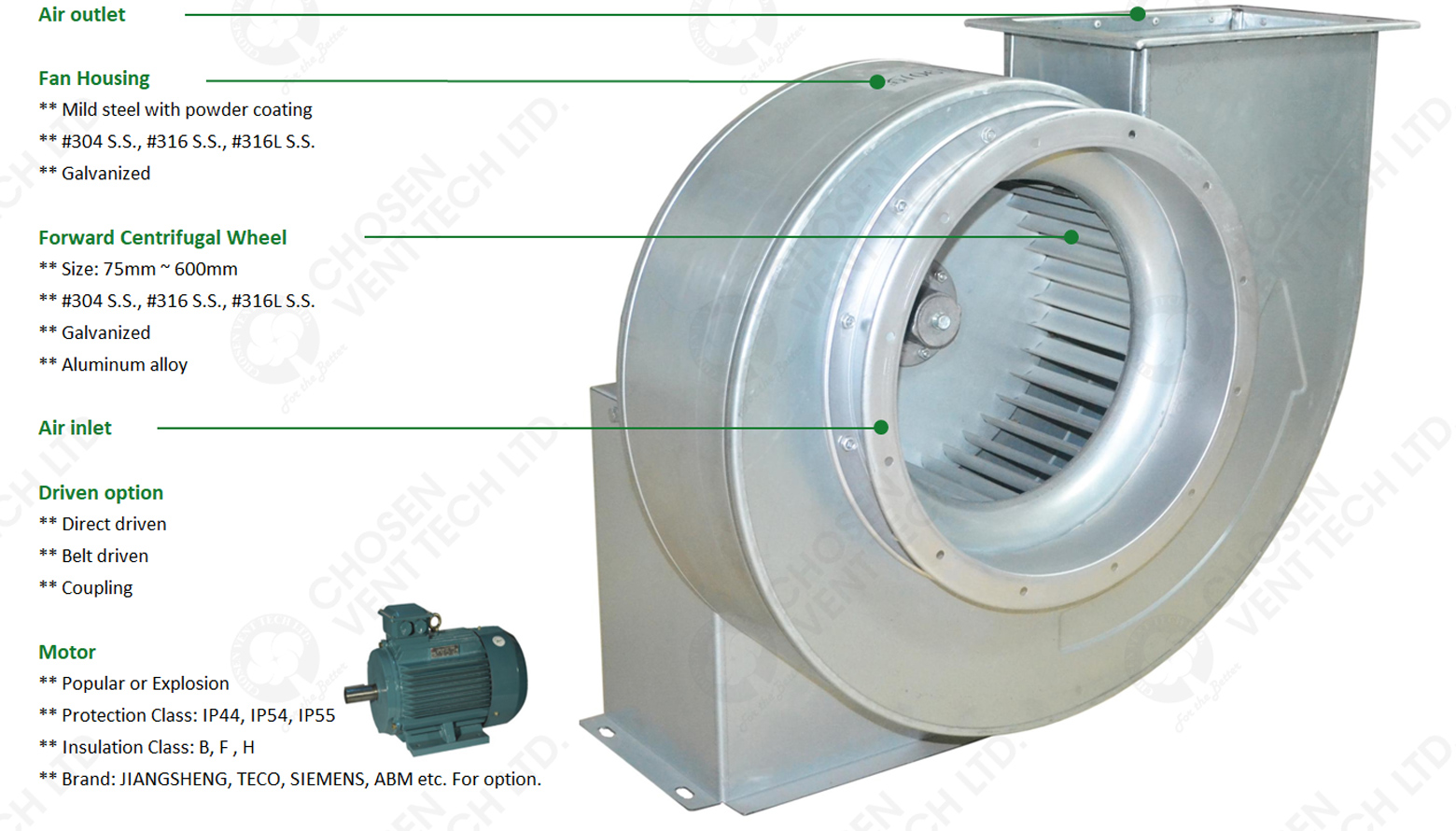

As experienced manufacturer and supplier, CHOSEN provides Forward centrifugal fan (SWSI) with high performance and competitive price. Customization Available! Contact us right now!
· For ventilation (General air or Explosion-proof air supply or exhaust) system and industrial(HVAC) applications where moderate capacities at low pressures are required such as building, air-conditioning, firfighting, air circulation or cooling and so on.
· For equipments or system of filtration & drying, fume hood & spray booth, painting room, food processing , kitchen room and so on.
· The Fan with Compact structure.
· The impeller passes dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.
· The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
· Transportation gas temperature at -20℃ ~ 200℃.
· The fan performance be test by airway or AMCA both available, the fan performance data is truth and reliable.
· Fan Material is optional according to your need.
· Customzation is acceptable.
Item | Impeller Dia | Voltage | Power | Speed | Air Flow | Air Pressure |
mm | V | W | rpm | CMH | Pa | |
FSW75 | 75 | 220 | 25 | 2850 | 110-135 | 128-70 |
FSW100 | 100 | 220 | 40 | 2850 | 140-180 | 200-110 |
FSW125 | 125 | 220 | 90 | 2850 | 350-410 | 340-300 |
FSW150 | 150 | 220/380 | 200 | 2850 | 700-900 | 400-200 |
FSW160 | 160 | 220/380 | 250 | 2850 | 800-1080 | 900-700 |
FSW175 | 175 | 220/380 | 550 | 2850 | 1200-1300 | 930-700 |
FSW190 | 190 | 220/380 | 750/1100 | 2850 | 1800-2100 | 840-760 |
FSW190 | 190 | 220/380 | 180 | 1400 | 900-1080 | 280-210 |
FSW230 | 230 | 220/380 | 1500 | 2850 | 2200-3000 | 1230-1000 |
FSW230 | 230 | 220/380 | 370 | 1400 | 1000-1600 | 360-200 |
FSW250 | 250 | 220/380 | 2200 | 2850 | 3000-3800 | 1471-1275 |
FSW250 | 250 | 220/380 | 750 | 1400 | 2200-2500 | 450-380 |
FSW270 | 270 | 220/380 | 750 | 1400 | 1800-3200 | 590-430 |
FSW300 | 300 | 380 | 1500 | 1400 | 4000-4500 | 750-600 |
FSW350 | 350 | 380 | 3000 | 1400 | 5100-7000 | 1200-1000 |
FSW400 | 400 | 380 | 4000 | 1400 | 7500-8500 | 1400-1200 |
FSW400L | 400 | 380 | 2200 | 960 | 9000-10000 | 610-530 |
FSW450 | 450 | 380 | 7500 | 1400 | 9000-12000 | 1500-1300 |
FSW500 | 500 | 380 | 5500 | 960 | 10000-12000 | 960-900 |
FSW550 | 550 | 380 | 7500 | 960 | 13000-15000 | 1200-1100 |
FSW600 | 600 | 380 | 7500 | 960 | 11000-13000 | 1400-1250 |
FSW600 | 600 | 380 | 11000 | 960 | 13000-16000 | 1250-1100 |
