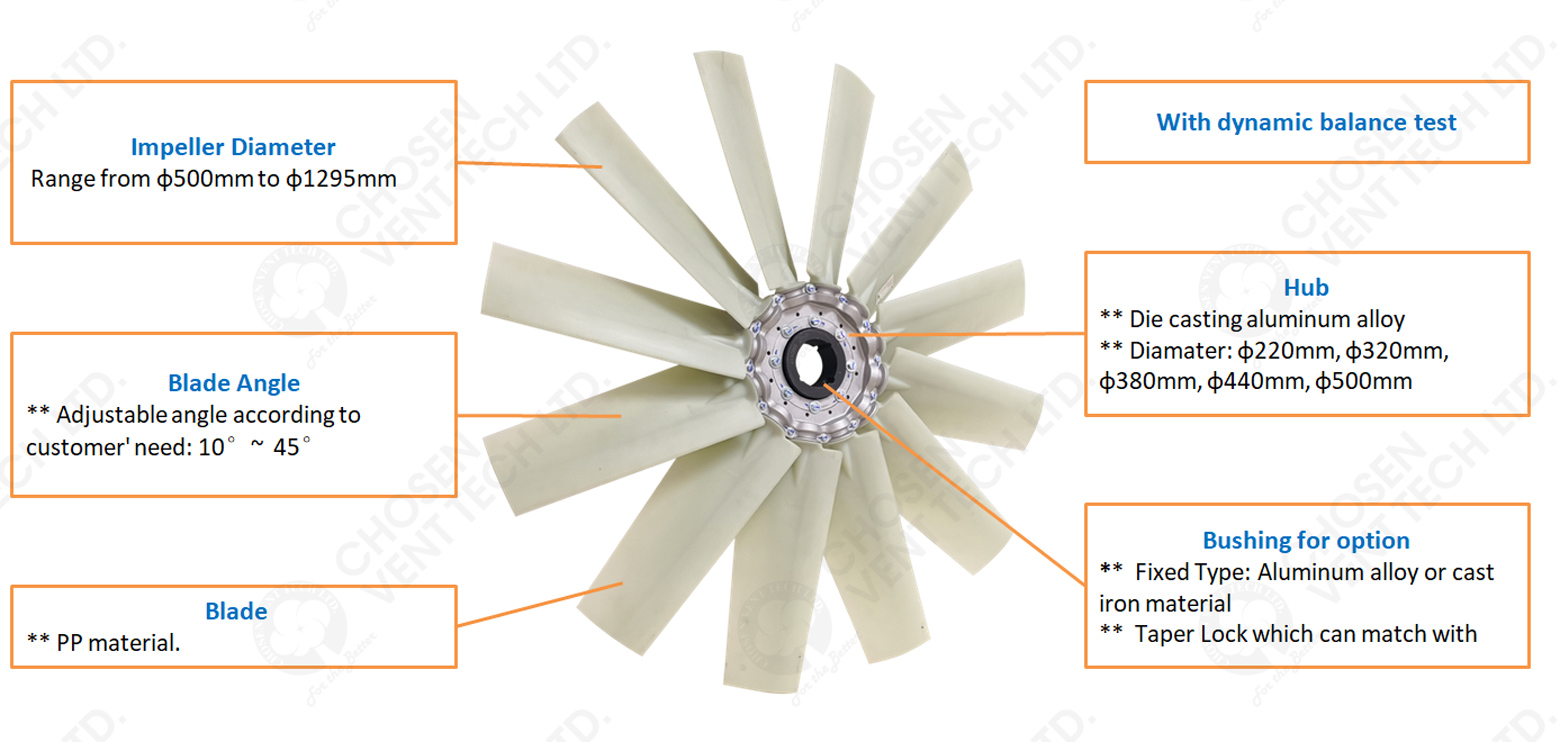

CHOSEN’s PP axial impeller range from 500mm to 1295mm. Adjustable angles for blades. High effiency. With dynasmic balance test. Welcomed to contact us!
The axial fan impellers are widely used in axial flow fan, radiator, central air conditioning, refrigeration equipment, air compressor, cooling tower, building ventilation and heat dissipation equipment, wind power equipment and so on.
* With professional performace curve which data is got by AIR ROOM TEST.
* Every impeller will be tested by dynamic balance test
* Different materials for meeting anti-corrosion /explosion proof / high temperature resistant requirement
* Reversible or unidirectional blades for option
* With Adjustable angle blades
* Customized size
* Various blades type for meeting different performance demand
* Flaw detection test for the blades
Impeller Dia Range Ø | mm | 200-2000 |
HUB Dia Range Ø | mm | 97-550 |
Air direction | reversible or unidirectional | |
Blade type | P3, S1, S14,Pmax3, p4z, p5z, k6z,2Z, 7z, S7,S4Z, 7X,50X, p6z,5W,6W,8W, 9W | |
Blades quantity | 3-16 | |
Temperature Range | -35℃-150℃ | |
Material Option | PAG | |
PACAS | ||
Aluminum alloy | ||
Shaft Bushing Option | Fixed Bushing or Taper Lock | |
Blade Angle° | 10°, 15°, 20°, 25°, 30°, 35°, 40° | |
Customizable |
