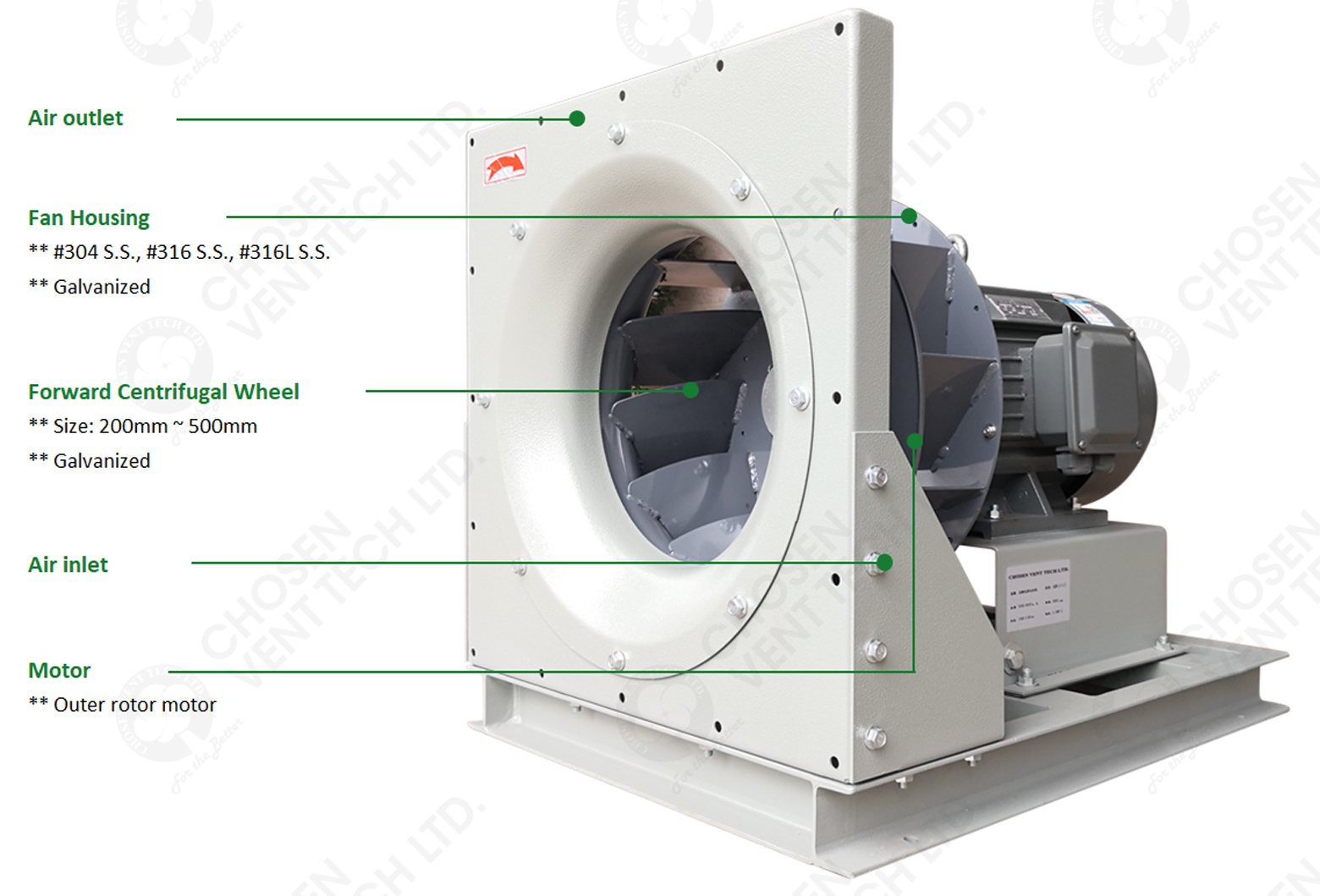

Plug Fan

Plug fans offer great versatility for complex system configurations. Equipped with a gusseted mounting panel, they are mounted directly to the plenum wall separating the motor and drive components from the process air. Plug fans provide high efficiency receyculation air with the benefit of easy installation and removal.

Application

With Simple structure and high performance, the Plug Fan is widely used in AHU system, Air Conditioning System for Hotels, commercial buildings, theaters, hospitals, factories, etc.

Advantages

· Eliminates the need for connecting duct work. Its mounting panel permits assembled-unit installation to any well-supported plenum wall.
· Compact free running unit in plenum made by a base frame, motor, backward wheel impeller, inlet cone.
· With high performance impeller made in welded steel.
· Easy maintenance.
· With dynamic balance test for the fan wheel.

Parameters

Item	Air flow	Totle pressure	Speed	Motor（H Grade）
Item	CMH	Pa	rpm	Motor（H Grade）
BPL-315-4-X	700-2200	260-160	1400	0.55KW - 4
BPL-315-2-X	1000-3700	850-420	2800	1.5KW - 2
BPL-355-4-X	1300-2900	340-220	1450	0.75KW - 4
BPL-355-2-X	2500-6000	1300-900	2800	3KW - 2
BPL-400-6-X	1200-2700	190-100	960	0.55KW - 6
BPL-400-4-X	1500-4200	400-240	1450	1.1KW - 4
BPL-400-2-X	5000-8000	1900-1100	2800	5.5KW - 2
BPL-450-6-X	2500-4000	300-180	960	0.55KW - 6
BPL-450-4-X	3500-6000	650-400	1450	1.5KW - 4
BPL-500-6-X	3000-5500	350-180	960	0.75KW - 6
BPL-500-4-X	5000-9000	800-450	1450	2.2KW - 4
BPL-560-6-X	4500-8000	450-230	960	1.1KW - 6
BPL-560-4-X	6000-12500	1100-500	1450	4KW - 4
BPL-630-6-X	7000-11000	500-240	960	2.2KW - 6
BPL-630-4-X	10000-17000	1300-600	1450	7.5KW - 4
BPL-710-6-X	9000-16000	710-320	960	4.0KW - 6
BPL-710-4-X	14000-25000	1600-750	1450	15KW - 4
BPL-800-8-X	10000-17000	550-240	720	3.0KW - 8
BPL-800-6-X	13000-21500	900-400	960	7.5KW - 6
BPL-800-4-X	18000-32000	1900-800	1450	18.5KW - 4
