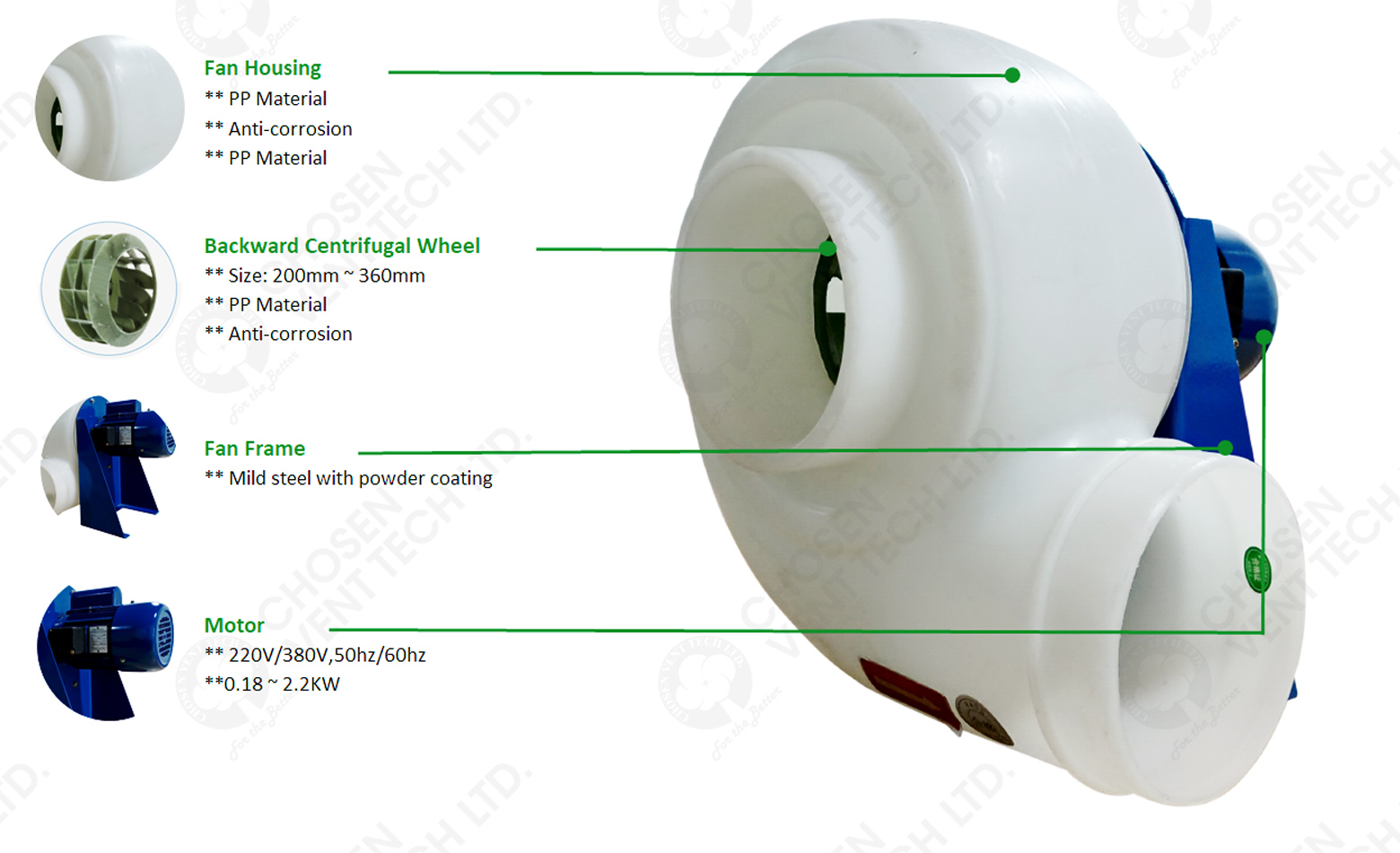

Lab centrifugal fan which is made in PP material is designed to extract corrosive or explosive fumes from highly corrosive processes such as laboratories, chemical plants, hospitals, etc.
· For chemical engineering, electroplate, oxidation, power plants, laboratories, circuit boards, environmental protection equipment, where there are corrosive gases.
· FD Centrifugal fan housing and impeller are made of Polypropylene material.
· The equipment has advantages of high intensity, light weight, not easy for aging, low noise.
· It is a newpattern anti-corrosion fan with nice effect.
· Performance curve with reliable data can be provided.
· With dynamice balance test for the wheel.
Model | Rotation | Volume | Pressure | Power | Voltage | Frequency | Noise | Weight |
rpm | m³/h | Pa | Kw | V | Hz | dB(A) | Kg | |
CH-FD200A2 | 2850 | 1100 | 450 | 0.18 | 220/380 | 50 | 65 | 0 |
CH-FD250A2 | 2850 | 2100 | 750 | 0.37 | 220/380 | 50 | 71 | 19.5 |
CH-FD250A4 | 1450 | 1080 | 160 | 0.12 | 220/380 | 50 | 54 | 15.5 |
CH-FD315A2 | 2850 | 4260 | 1200 | 1.1 | 220/380 | 50 | 75 | 25.5 |
CH-FD315A4 | 1450 | 2100 | 290 | 0.25 | 220/380 | 50 | 57 | 20.5 |
CH-FD360A2 | 2850 | 5268 | 1578 | 2.2 | 220/380 | 50 | 79 | 32 |
CH-FD360A4 | 1450 | 2634 | 393 | 0.37 | 220/380 | 50 | 60 | 25.5 |
