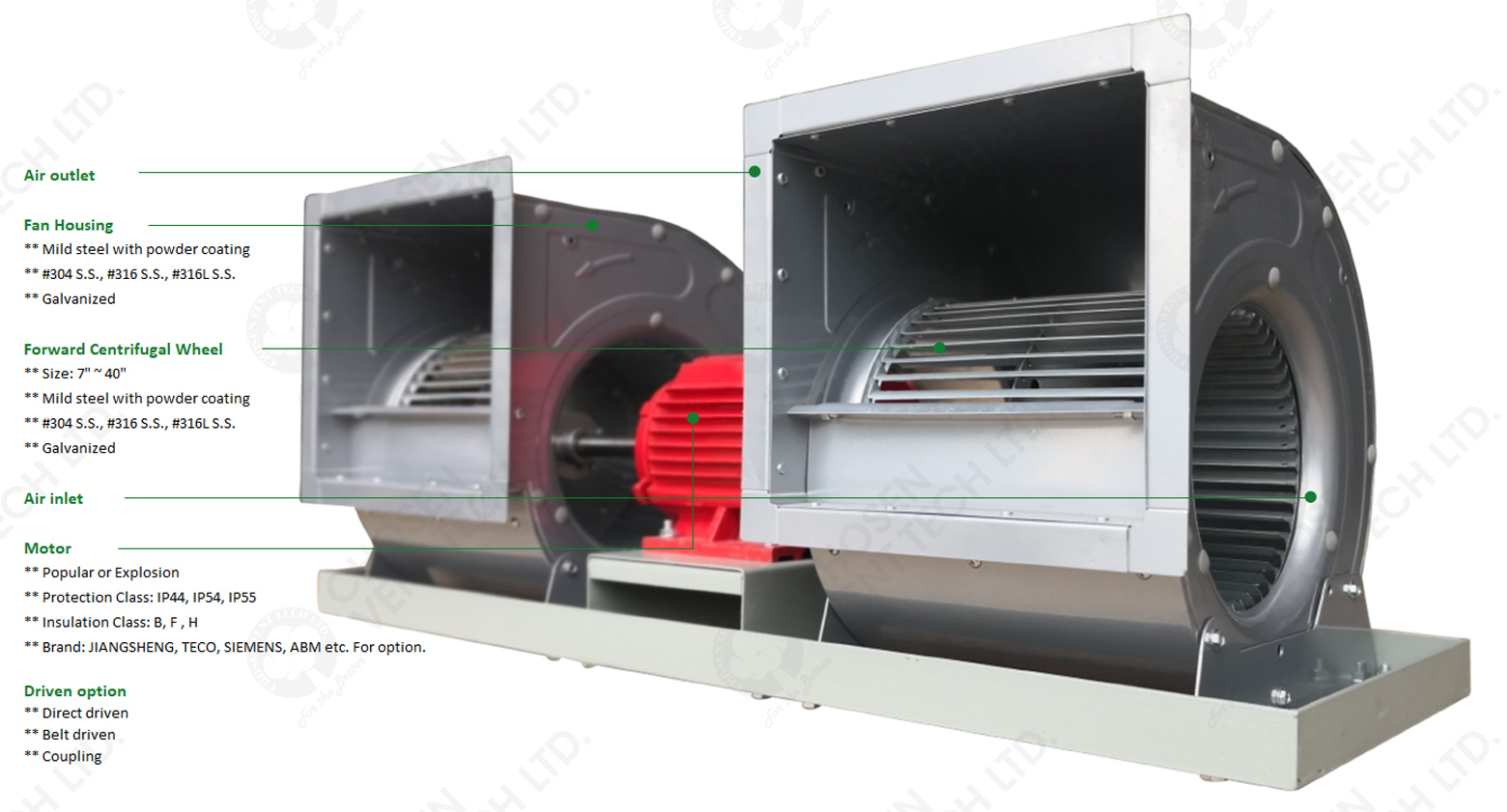

CHOSEN’S FDW Series fan is the belt driving centrigugal fan that is mainly applied in central air conditioning units, pipeline unit and other HVAC, cleaning, ventilation equipment with the features of low noise, high effeciency, stable operation and flexible adjustment etc.
The fan is widely applied to the cabinet-type central air conditioning units, pipeline unit and other HVAC, cleaning, ventilation equipment with the features of low noise, high effeciency, stable operation and flexible adjustment etc.
The fan has compact structure, stable and high efficiency. Low noise, long working life, stable operation and flexible adjustment.
Item | Power | Air Flow | Total Pressure | Static Pressure | Speed |
Kw | (m3/h) | (Pa) | (Pa) | RPM | |
FDW2-09-4 | 2.2 | 6000-8000 | 430-330 | 362-208 | 1450 |
FDW2-10-4 | 4 | 8000-14000 | 550-470 | 469-344 | 1450 |
FDW2-12-6 | 3 | 10000-13500 | 370-330 | 306-214 | 960 |
FDW2-12-4 | 7.5 | 14000-18000 | 850-800 | 725-593 | 1450 |
FDW2-15-6 | 7.5 | 18000-27000 | 480-430 | 376-197 | 960 |
