CHOSEN’s Jet fan is an impulse fan designed for the ventilation of car parks and underground service areas, so as to reduce levels of polluted air and to speed up the air flow. It uses tunnel ventilation technology to eliminate the need for costly and bulky ductwork.
Ventilation of underground parking lots, multi-story carparkings, shopping centers, factories, warehouses, etc.
1. The fan is good looking, light handy and compact.
2. No need ducts, easy for installation, it takes small space.
3. Easy to manage the direction of the airflows.
4. With high efficiency cause the air be relay by the jet fans, the air can be long distance throw.
5. Color can be customized.

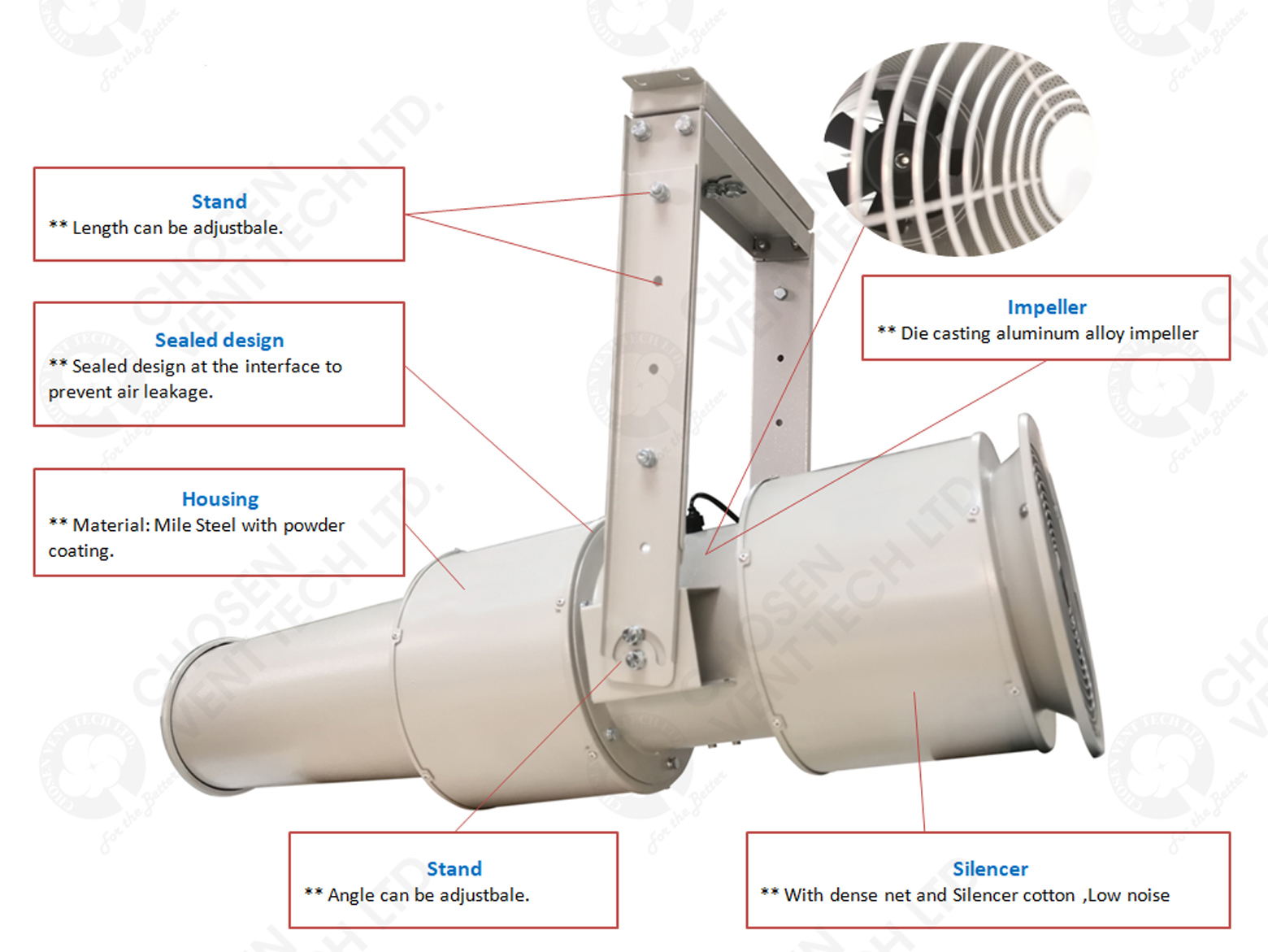

6. Adjustable angle and length for the hanging stand and Sealed design at the interface to prevent air leakage.
Model | Voltage | Phase | Frequency | Power | Rotated Speed | Air Flow | Wind Velocity | Noise | Product Dimension |
V | Ph | Hz | KW | RPM | CMH | m/s | dB | L x H x M (mm) | |
JTF200 | 220 | 1 | 50 | 0.15 | 2800 | 1200 | 13 | 59 | 960 x 350 x 675 ~ 900 |
60 | 0.19 | 3300 | 1400 | 15 | |||||
JTF250 | 220 | 1 | 50 | 0.25 | 2800 | 1998 | 14 | 62 | 1140 x 395 x 705 ~ 930 |
60 | 0.3 | 3300 | 2338 | 17 | |||||
JTF300 | 220 | 1 | 50 | 0.3 | 2800 | 3058 | 15 | 65 | 1385 x 444 x 735 ~ 960 |
60 | 0.48 | 3300 | 3624 | 19 |
