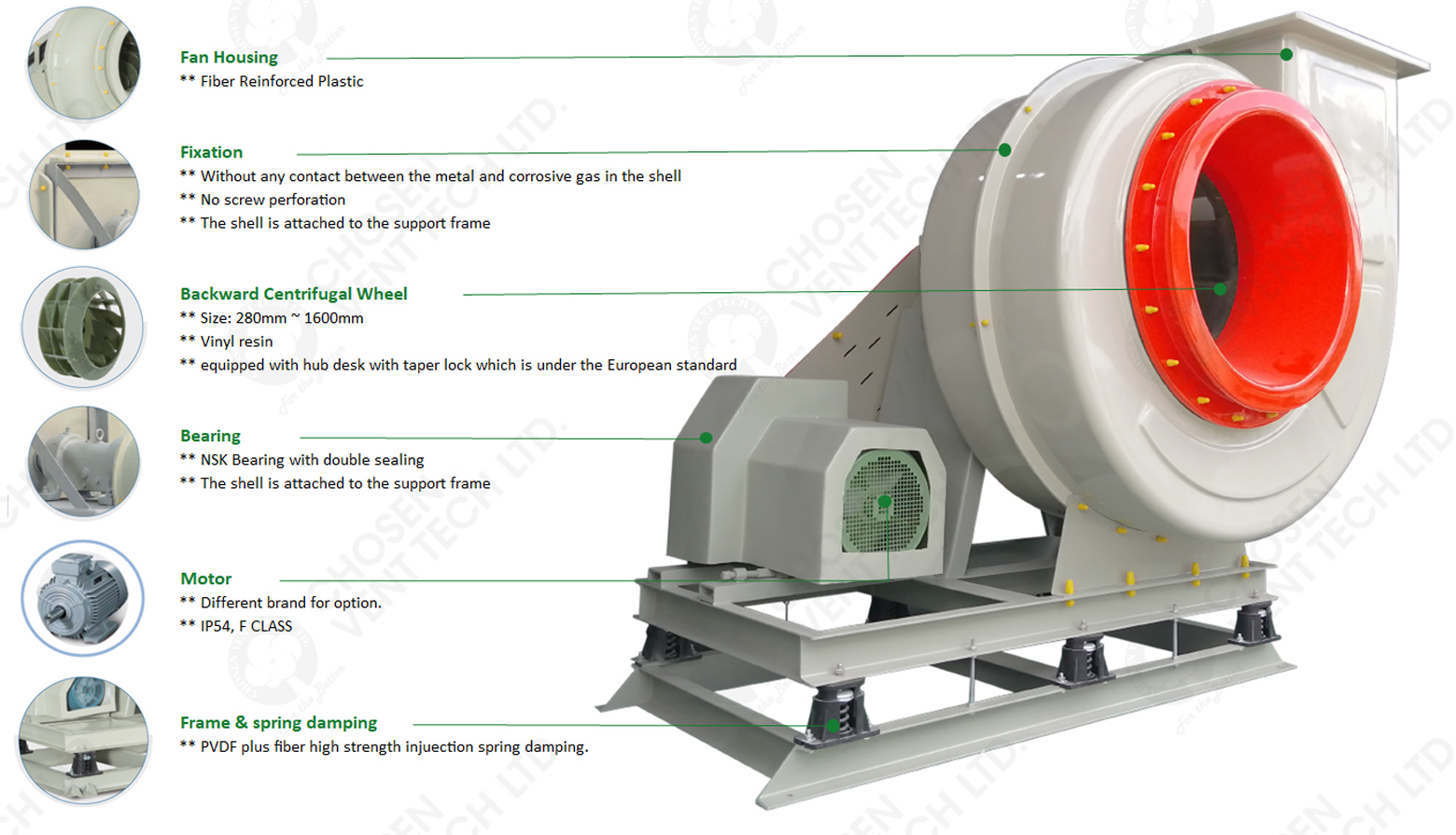

Anti-Corrosion Centrifugal Fan (F4-72C Series)

Anti-corrosion centrifugal fan type which is made in fiberglass reinforced plastic material is designed to extract corrosive or explosive fumes from highly corrosive processes such as laboratories, chemical plants, hospitals, etc.

Application

This series of fans are widely used in chemical industrial, electroplate, oxidation, power plants, laboratories, circuit boards, environmental protection equipment or where there are corrosive gases.

Advantages

· Fan housing & fan wheel are made of fiberglass reinforced plastic.
· The equipment has advantages of high intensity, light weight, not easy for aging, low noise.
· It is a newpattern anti-corrosion fan with nice effect.
· The impeller adopts water cooling or oil cooling base connected to the motor drive by belt.
· The fan performance be tested by airway, the fan performance data is truth and reliable.

Parameters

Item	Power	Speed	Air Flow	Total Pressure
Item	Kw	r/min	m³/h	Pa
F4-72-2.8C	0.75	1450	566-1060	497-303
F4-72-2.8C	1.5	2900	1131-2120	994-606
F4-72-3.2C	1.1	1450	844-1582	324-198
F4-72-3.2C	2.2	2900	1688-3165	1300-792
F4-72-3.6C	1.1	1450	1332-2371	393-247
	2.2	2200	1843-3420	1142-837
	3	2900	2664-4741	1578-989
F4-72-4C	2.2	1800	2320-3642	724-432
	4	2250	2582-3857	1842-934
	5.5	2900	4012-6677	2014-1320
F4-72-4.5C	1.5	1600	2856-4696	824-634
	3	2000	3420-6781	1524-729
	5.5	2500	4512-8344	2018-1332
	7.5	2900	5712-9505	2554-1673
F4-72-5C	3	1600	3864-7728	790-502
	4	1800	4012-7931	924-713
	5.5	2000	5332-8721	1642-1132
	7.5	2500	5621-9418	2099-1393
F4-72-6C	3	1250	5756-10359	846-537
	4	1450	6677-12017	1139-724
	5.5	1600	7367-13260	1389-881
	7.5	1800	8288-14917	1760-1116
	11	2000	9309-16576	2176-1380
F4-72-7C	4	1000	7312-13161	736-468
	5.5	1120	8189-14740	924-586
	7.5	1250	9140-16451	1151-731
	11	1450	10602-19083	1550-984
	15	1600	11698-21057	1890-1190
F4-72-8C	5.5	1000	10914-18213	963-707
	7.5	1120	12224-20399	1209-887
	11	1250	13643-22767	1507-1106
	15	1450	15826-26409	2032-1490
	18.5	1520	16734-27775	2255-1681
	22	1600	17643-29142	2478-2390
F4-72-10C	11	800	22312-28107	967-766
	15	900	25101-31620	1225-970
	18.5	1000	27890-35134	1514-1190
	30	1120	31237-39349	1902-1505
F4-72-12C	15	630	30362-38248	863-684
	18.5	710	34218-43105	1097-869
	30	800	38556-48569	1395-1104
	37	900	43375-54640	1767-1399
	55	1000	48195-60711	2185-1729
F4-72-14C	22	560	42859-59990	929-736
	30	630	48217-67488	1177-932
	37	710	54340-76058	1497-1185
	55	800	61228-85699	1903-1506
	75	900	68881-96412	2412-1908
	110	1000	76535-107124	2985-2361
F4-72-16B	55	630	71971-100730	1538-1218
	75	710	81110-113520	1957-1549
	110	800	91392-119300	2489-1969
	132	900	102810-127920	3157-3115
	160	950	12040-143910	2990-2497
