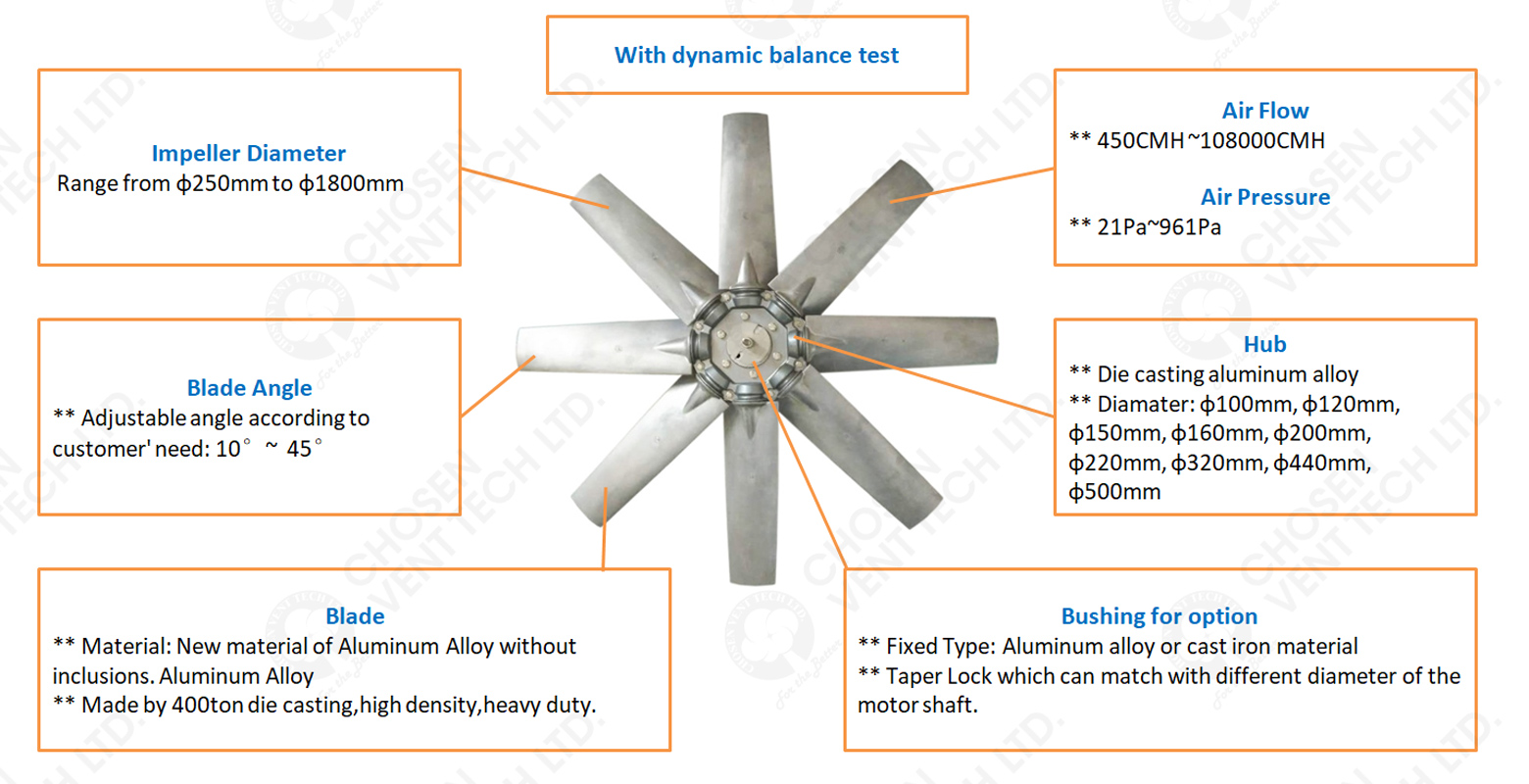

Aluminum Alloy Axial Fan Impeller

CHOSEN’s Aluminum alloy axial impeller range from 250-1800 mm. Made by 400 ton die casting. Adjustable angles for blades. High efficency. With dynamic balance test. Welcomed to contact us!

Application

Integrated fans, roof ventilators, ventilation and air-conditioning systems (HVAC/AHU), industrial applications.

Advantages

* Aluminum Alloy: 400ton die casting,high density,heavy duty. The wall with uniform thickness and no die surface porosity.
*New material of Aluminum Alloy without inclusions.
*Each impeller be inspection by Dynamic Balance.
*Adjustable angles for fan blades.
*Test by completed build-up axial fan, the air Performance Parameter is truth and reliable.
*High static efficiency, Long lasting.

Parameters

Impeller Dia Range Ø	mm	315-1980
			HUB Dia Range Ø	mm	150-550
Blades quantity	3-18
			Blades type	A, B, C, D, H, J, G
Material Option	Aluminum Alloy
	PAG
	Mild steel
	Stainless steel #304, 316, 316L
Shaft Bushing Option	Fixed Bushing , Taper Lock
			Blade Angle°		10°, 15°, 20°, 25°, 30°, 35°, 40°
			Customizable
