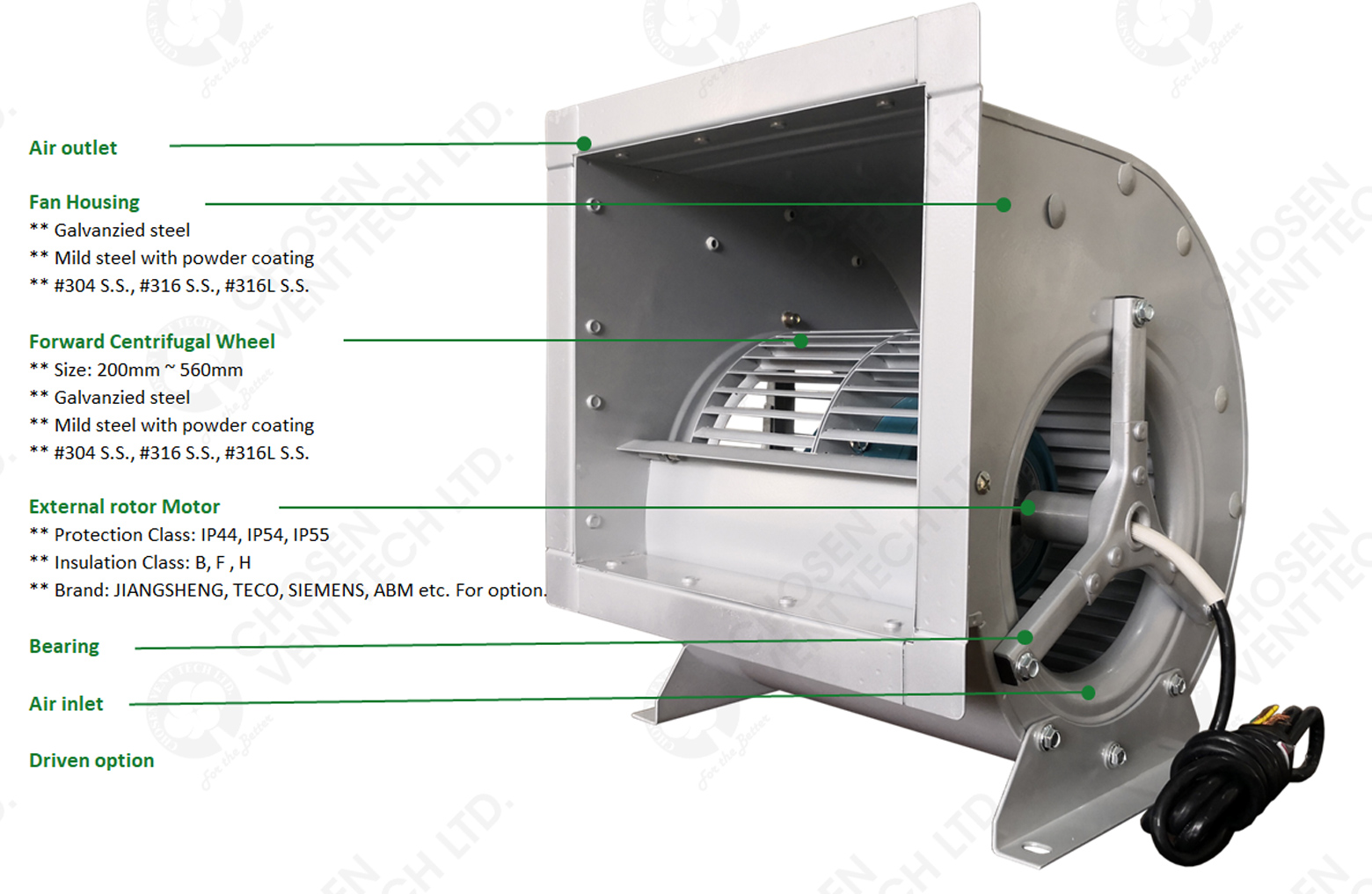

The AKF fans is double forward centrifugal fan with outer rotor motor, which widely used in special equipment such as various types air conditioner sets, air purify equipment and drying equipment and so on.
The Air-conditioning Kit Fan are specialized for the Air Conditioning unit, Air handling unit, Drying Equipment, Air purification Equipment and so on. It can also be used for ventilation in various places.
* The fans with compact structure and quality components.
* The fans by strict inspection, whole fan by Dynamic Balance to avoid vibration, low noice, stable running, long working life.
* Own LAB to test the performance for every model of fans, with energy efficiency certification, reliable & precise performance for equipments & systems operation.
* With frame or foot bases, easy to install, convenience to use.
Item | Air Flow | Total Pressure | Static Pressure | Power |
m³/h | Pa | Pa | Kw | |
AKF2.0D-6 | 633-1399 | 108-57 | 101-25 | 0.18 |
AKF2.0D-4 | 711-1902 | 233-130 | 223-70 | 0.25 |
AKF2.0D2-4 | 1346-2235 | 211-91 | 189-32 | 0.25 |
AKF2.0S-6 | 368-996 | 107-86 | 99-31 | 0.18 |
AKF2.0S-4 | 388-1517 | 247-171 | 239-42 | 0.25 |
AKF2.3D1-4 | 1327-2071 | 374-336 | 351-280 | 0.32 |
AKF2.3D2-6 | 1046-2654 | 168-111 | 156-50 | 0.18 |
AKF2.3D2-4 | 1695-2517 | 331-294 | 298-240 | 0.32 |
AKF2.3D2-4B | 1653-2700 | 390-356 | 359-293 | 0.37 |
AKF2.3D3-4 | 2057-3000 | 324-274 | 297-215 | 0.45 |
AKF2.3S-4 | 1396-2561 | 341-312 | 282-162 | 0.32 |
AKF2.3S-4B | 1310-2448 | 435-411 | 392-274 | 0.37 |
AKF2.5D1-6 | 1050-2335 | 174-102 | 163-53 | 0.25 |
AKF2.5D1-4 | 1702-3054 | 383-247 | 345-164 | 0.55 |
AKF2.5D1-4B | 1690-2984 | 445-351 | 404-272 | 0.55 |
AKF2.5D2-6 | 1760-2907 | 192-135 | 169-71 | 0.32 |
AKF2.5D2-4 | 1674-3312 | 415-290 | 381-207 | 0.55 |
AKF2.5D2-4B | 2414-3968 | 415-279 | 371-159 | 0.75 |
AKF2.5D3-6 | 2364-3267 | 176-116 | 144-54 | 0.37 |
AKF2.5D3-4 | 2355-4041 | 368-217 | 335-121 | 0.75 |
AKF2.5D3-4B | 3054-4223 | 427-294 | 372-189 | 0.75 |
AKF2.5S1-4B | 771-2007 | 510-480 | 490-347 | 0.45 |
AKF2.5S2-4B | 1435-2437 | 487-480 | 430-337 | 0.55 |
AKF2.5S3-4B | 1592-3394 | 522-506 | 477-301 | 0.75 |
AKF2.8D1-6 | 1994-3058 | 300-177 | 266-106 | 0.37 |
AKF2.8D1-4 | 2272-4081 | 626-575 | 563-449 | 1 |
AKF2.8D2-6 | 2588-4203 | 248-226 | 212-136 | 0.45 |
AKF2.8D2-4A | 2159-5085 | 546-524 | 501-396 | 1.1 |
AKF2.8D2-4 | 2400-5400 | 507-425 | 451-277 | 1.1 |
AKF2.8D3-6 | 2712-4675 | 267-232 | 237-143 | 0.55 |
AKF2.8D3-4 | 3874-6077 | 532-373 | 471-223 | 1.5 |
AKF2.8S-6 | 1839-2689 | 267-255 | 200-113 | 0.37 |
AKF2.8S-4 | 1572-2936 | 561-554 | 506-388 | 0.75 |
AKF3.0D1-4 | 3708-5547 | 646-590 | 572-452 | 1.5 |
AKF3.0D2-4 | 3871-5944 | 658-538 | 604-411 | 1.8 |
AKF3.2D1-6 | 2623-4427 | 383-376 | 348-294 | 0.75 |
AKF3.2D1-4 | 2939-6120 | 732-653 | 680-497 | 1.8 |
AKF3.2D2-6 | 2986-5703 | 328-227 | 290-109 | 1.1 |
AKF3.2D2-4 | 3235-7092 | 604-377 | 566-194 | 2.2 |
AKF3.2S-6 | 2397-4148 | 371-328 | 286-93 | 0.75 |
AKF3.2S-4 | 3464-6053 | 797-669 | 633-168 | 2.2 |
AKF3.5D1-4 | 4084-6048 | 687-630 | 618-502 | 2.2 |
AKF3.5D2-4 | 4706-8387 | 794-703 | 730-552 | 3 |
AKF3.5S1-4 | 2945-5646 | 868-749 | 775-406 | 2.2 |
AKF3.5S2-4 | 3726-7242 | 876-702 | 773-355 | 3 |
AKF3.8D-6 | 5078-10153 | 584-518 | 512-308 | 2.2 |
AKF3.8S-6 | 5385-8292 | 502-413 | 335-15 | 1.8 |
AKF4.0D1-6 | 5738-8851 | 594-574 | 507-417 | 2.2 |
AKF4.0D2-6 | 6240-11569 | 575-401 | 525-230 | 3 |
AKF4.0S1-6 | 5208-8554 | 630-604 | 480-290 | 1.8 |
AKF4.0S2-6 | 6548-10800 | 600-570 | 433-171 | 2.2 |
AKF4.5D1-6 | 9127-13829 | 720-633 | 629-423 | 4 |
AKF4.5D2-6 | 9923-16768 | 716-609 | 652-425 | 5.5 |
AKF4.5D3-6 | 13210-20200 | 705-634 | 597-416 | 7.5 |
AKF4.5S1-6 | 7997-14713 | 726-694 | 528-142 | 4 |
AKF4.5S2-6 | 10966-16727 | 759-690 | 499-98 | 5.5 |
AKF5.0D1-6 | 14122-23400 | 848-710 | 772-502 | 7.5 |
AKF5.0D2-6 | 16596-25200 | 868-740 | 781-539 | 11 |
AKF5.0S1-6 | 12182-21600 | 894-778 | 668-146 | 7.5 |
AKF5.0S2-6 | 16929-24120 | 918-810 | 593-151 | 11 |
AKF5.6D-6 | 15769-25533 | 959-835 | 854-622 | 11 |
AKF5.6S-6 | 14768-23878 | 1011-1049 | 827-567 | 11 |
